92159400
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
Features & Benefits:
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem
- Radius arm drop brackets allow for properly set caster
- Proper caster is crucial to maintaining factory handling and drivability
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Associated Comments:
- Does NOT fit V-8 gas engine models. Does NOT fit dually models. V-10 gas engine models will require exhaust modification to clear the front driveshaft. If vehicle is equipped with rear overload leafs, they will need to be removed.
Additional Attributes:
- GTIN: 00840269917479

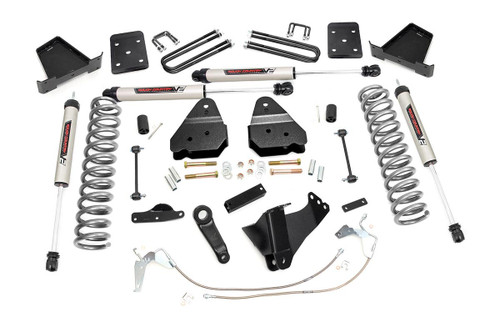

- Front Components: Lifted coil springs, Radius arm drop brackets, Extended sway-bar links, Track bar drop bracket, Pitman arm, Stainless steel braided brake lines, Bumpstop spacers, Hardware
- Install Time: 6-8 hours
- Rear Components: Fabricated anti-wrap lift blocks, Carrier bearing drop bracket, U-bolts, Hardware
- Tire Wheel and Offset Info: 35x12.50R17:17x9:8x170:-12:-; 35x12.50R18:18x9:8x170:-12:-; 35x12.50R20:20x9:8x170:-12:-
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: x x inches
