Features & Benefits:
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster
- Proper caster is crucial to maintaining factory handling and drivability
- Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Associated Comments:
- Does NOT F-350 models. Does NOT fit gas engine models. Does NOT fit dually models. A carrier-bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. SKU: 1197.
Additional Attributes:
- GTIN: 00840269919480

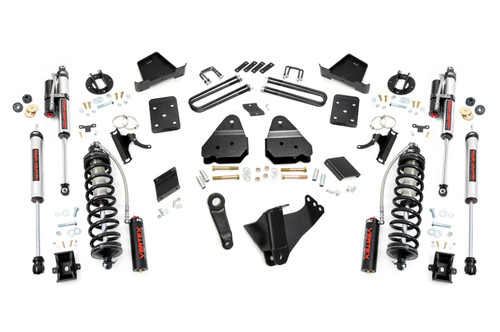

- Front Components: Vertex Coilovers, Radius Arm Drop Brackets, Sway-Bar Drop Brackets, Track Bar Drop Bracket, Stabilizer Relocation Brackets, Pitman Arm, Brake Line Brackets, Bumpstop Spacers, Hardware
- Install Time: 6-10 hours
- Rear Components: Fabricated Anti-Wrap Lift Blocks, Carrier Bearing Drop Bracket, Brake Line Brackets, U-Bolts, Hardware
- Tire Wheel and Offset Info: 35x12.50R17:17x9:8x170:-12:-; 35x12.50R17:17x9:8x170:+0:-; 35x12.50R17:17x9:8x170:+1:-; 35x12.50R18:18x9:8x170:-12:-; 35x12.50R18:18x9:8x170:+0:-; 35x12.50R18:18x9:8x170:+1:-; 35x12.50R20:20x9:8x170:-12:-; 35x12.50R20:20x9:8x170:+0:-; 35x12.50R20:20x9:8x170:+1:-; 35x12.50R20:20x10:8x170:-25:Minor Trimming; 35x12.50R20:20x10:8x170:-24:Minor Trimming; 35x12.50R20:20x10:8x170:-19:Minor Trimming; 295 60R20:20x10:8x170:-19:-; 35x12.50R20:20x10:8x170:-18:Minor Trimming; 295 60R20:20x10:8x170:-18:-; 35x12.50R20:20x12:8x170:-44:Minor Trimming; 35x12.50R22:22x10:8x170:-25:Minor Trimming; 35x12.50R22:22x10:8x170:-24:Minor Trimming; 35x12.50R22:22x10:8x170:-19:Minor Trimming; 35x12.50R22:22x10:8x170:-18:Minor Trimming; 35x12.50R22:22x12:8x170:-44:Minor Trimming
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: x x inches
