Features & Benefits:
- Easy bolt-on installation
- Increased ground clearance
- Clears up to 35" tires
- Factory tuned coil springs are based on the stock spring rate
Associated Comments:
- Does NOT fit 4-door (Unlimited) models. 35" tires will clear but rubbing may occur with extreme articulation If planning on running 35" tires on factory wheels, double check clearance between the front tire, lower control arm and sway-bar links. 2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)
Additional Attributes:
- GTIN: 00843030161408

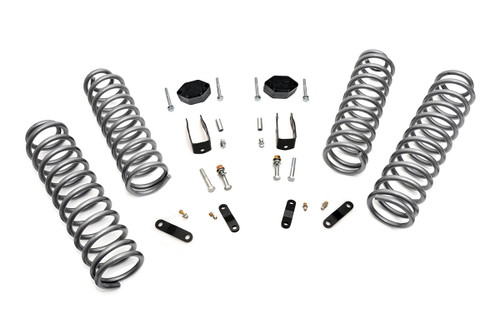

- Front Components: Lifted coil springs, Brake line relocation brackets, Hardware
- Install Time: 2-3 hours
- Rear Components: Lifted coil springs, Brake line relocation brackets, Hardware
- Tire Wheel and Offset Info: 285 75R17:Factory 17:5x5.0:-:-; 33x12.50R17:17x8.5:5x5.0:+0:-; 305 70R17:17x8.5:5x5.0:+0:-; 285 70R17:17x8.5:5x5.0:+0:-; 33x12.50R17:17x8.5:5x5.0:+1:-; 305 70R17:17x8.5:5x5.0:+1:-; 33x12.50R17:17x9:5x5.0:-12:-; 305 70R17:17x9:5x5.0:-12:-; 285 70R17:17x9:5x5.0:-12:-; 33x12.50R17:17x9:5x5.0:+0:-; 305 70R17:17x9:5x5.0:+0:-; 285 70R17:17x9:5x5.0:+0:-; 33x12.50R17:17x9:5x5.0:+1:-; 305 70R17:17x9:5x5.0:+1:-; 285 70R17:17x9:5x5.0:+1:-; 33x12.50R18:18x8.5:5x5.0:+0:-; 285 70R18:18x8.5:5x5.0:+0:-; 33x12.50R18:18x8.5:5x5.0:+1:-; 285 70R18:18x8.5:5x5.0:+1:-; 33x12.50R18:18x9:5x5.0:-12:-; 285 70R18:18x9:5x5.0:-12:-; 33x12.50R18:18x9:5x5.0:+0:-; 285 70R18:18x9:5x5.0:+0:-; 285 65R18:18x9:5x5.0:+0:-; 33x12.50R18:18x9:5x5.0:+1:-; 285 70R18:18x9:5x5.0:+1:-; 33x12.50R18:18x10:5x5.0:-25:-; 33x12.50R18:18x10:5x5.0:-24:-; 33x12.50R18:18x10:5x5.0:-19:-; 33x12.50R18:18x10:5x5.0:-18:-; 33x12.50R20:20x9:5x5.0:-12:-; 305 55R20:20x9:5x5.0:-12:-; 295 60R20:20x9:5x5.0:-12:-; 295 55R20:20x9:5x5.0:-12:-; 285 55R20:20x9:5x5.0:-12:-; 33x12.50R20:20x9:5x5.0:+0:-; 295 55R20:20x9:5x5.0:+0:-; 33x12.50R20:20x9:5x5.0:+1:-; 305 55R20:20x9:5x5.0:+1:-; 295 60R20:20x9:5x5.0:+1:-; 295 55R20:20x9:5x5.0:+1:-; 285 55R20:20x9:5x5.0:+1:-; 33x12.50R20:20x10:5x5.0:-25:-; 33x12.50R20:20x10:5x5.0:-24:-; 33x12.50R20:20x10:5x5.0:-19:-; 305 55R20:20x10:5x5.0:-19:-; 295 60R20:20x10:5x5.0:-19:-; 285 55R20:20x10:5x5.0:-19:-; 33x12.50R20:20x10:5x5.0:-18:-; 305 55R20:20x10:5x5.0:-18:-; 295 60R20:20x10:5x5.0:-18:-; 285 55R20:20x10:5x5.0:-18:-; 33x12.50R22:22x10:5x5.0:-25:-; 33x12.50R22:22x10:5x5.0:-24:-; 33x12.50R22:22x10:5x5.0:-19:-; 33x12.50R22:22x10:5x5.0:-18:-; If you run factory wheels, you will need to add 1.5in wheel spacers
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: x x inches
